Hello SSH

Legend

Parts of this exercise are annotated with the following icons:

• A task you MUST perform to complete the exercise
• Optional step that you may perform to make sure that everything is working correctly, or to set up additional tools that are not required but can help you
• Advanced tips on how to go further (or challenges!)
• The end of the exercise
• The architecture of the software you ran or deployed during this exercise
• Troubleshooting tips: how to fix common problems you might encounter

Connect to the exercise server

An SSH exercise server has been prepared so that you can learn to use the ssh command and other SSH-based tools. Your username and password for this server are shown on the dashboard, along with the fingerprints of the server’s SSH host keys.

Go to the dashboard

As we’ve seen, the basic syntax of the SSH command is as follows:

$> ssh <username>@<hostname>

To connect to the server:

• Determine the SSH command to connect to the exercise server. Replace the <username> placeholder by the username shown on the dashboard, and the <hostname> placeholder by ssh.archidep.ch.

• Execute that command in your console.

• Since you are probably connecting to this server for the first time, you should get the initial SSH connection warning indicating that the authenticity of the host cannot be established:

  The authenticity of host 'ssh.archidep.ch (W.X.Y.Z)' can't be established.
  ED25519 key fingerprint is SHA256:...
  Are you sure you want to continue connecting (yes/no/[fingerprint])?


  Before accepting, you should verify that the key fingerprint in the warning message corresponds to one of the fingerprints shown on the dashboard. You can do that by pasting the fingerprint from the dashboard (the one that starts with SHA256:) instead of answering yes. Your SSH client will compare it with the fingerprint the server sent, and will only continue if they match.

• Enter or paste your password when prompted.

Tip

The password’s characters will not appear as you type or after pasting. This is a feature, not a bug. Passwords are not displayed to make it harder for someone looking over your shoulder to read them.

You should now be connected to the server. You should see a welcome banner giving you some information about the server’s operating system, and the prompt should have changed. Any command you type is now executed on the remote server.

Spot the difference

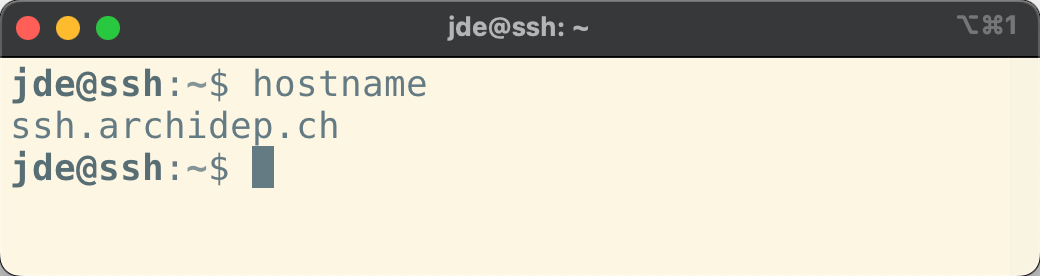

Run the following commands on the server:

• hostname
• whoami

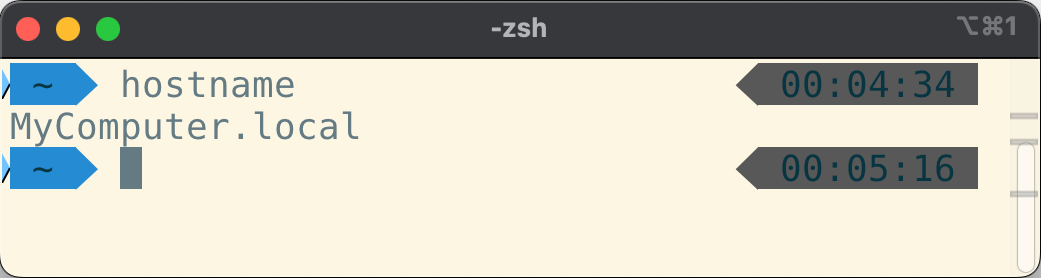

Open another console and run these commands again. Since this is a fresh console, they will be executed on your local machine this time. Observe the difference in output when you are connected to the server or running the commands on your local machine.

More information

The hostname command prints the network name of the computer you are running it on. This is likely to be different on your local machine than on the SSH exercise server.

Another interesting command to run to see the difference between your machine and the server is the uname command. Try running it on the server and your machine. Read the documentation and try some of its options to get more information about your machine and the server.

Tip

If you want to quickly run a command on a remote server with SSH and immediately disconnect, you can do so by providing more arguments to the SSH command:

$> ssh <username>@<hostname> [command]

For example, assuming your username is jde, open a new console and execute the following commands:

$> ssh jde@ssh.archidep.ch hostname
ssh.archidep.ch

$> hostname
MyComputer.local

You can see from the output that the first command was run on the server, but that you are no longer connected by the time you ran the second command.

Set up public key authentication

The goal of this step is to generate a public/private key pair on your machine and to configure SSH to use public key authentication instead of password authentication on the SSH exercise server.

This will improve security and avoid having to type your password on each SSH connection. You will also need this key pair for the rest of the course: to authenticate to GitHub, and to connect to your own server later.

Disconnect from the server (with the exit command) or open a new console to run commands on your local machine.

Do I already have a key pair?

By default, SSH keys are stored in the .ssh directory in your home directory:

$> ls ~/.ssh
id_ed25519  id_ed25519.pub  known_hosts

If you have the id_ed25519 and id_ed25519.pub files, you’re good to go, since SSH expects to find your main Ed25519 private key at ~/.ssh/id_ed25519. You might also have a default key pair using another algorithm, such as an ECDSA key pair with files named id_ecdsa and id_ecdsa.pub, or an RSA key pair with files named id_rsa and id_rsa.pub if your system has an older SSH client.

The known_hosts file is where your SSH client remembers the servers you trusted: it was created when you first connected to any server over SSH.

If the directory doesn’t exist or only contains known_hosts, you don’t have a key pair yet.

Generate a private-public key pair

Skip this step if you already have a key pair. If you don’t, perform this step on your local machine, not on the SSH exercise server.

If you do not already have a key pair, you should generate one for the rest of the exercise and the course. You will use the ssh-keygen command.

More information

The ssh-keygen command is usually installed along with SSH and can generate a key pair for you. It will ask you a couple of questions about the key:

• Where do you want to save it? Simply press enter to use the proposed default location (~/.ssh/id_ed25519 for an Ed25519 key, ~/.ssh/id_rsa for an RSA key, etc).
• What password do you want to protect the key with? Enter a password or simply press enter to use no password.

Simply running ssh-keygen with no arguments will ask you the required information and generate a new key pair using your SSH client’s default algorithm:

$> ssh-keygen
Generating public/private ed25519 key pair.
Enter file in which to save the key (/home/jde/.ssh/id_ed25519):
Enter passphrase (empty for no passphrase):
Enter same passphrase again:
Your identification has been saved in /home/jde/.ssh/id_ed25519.
Your public key has been saved in /home/jde/.ssh/id_ed25519.pub.
The key fingerprint is:
SHA256:MmwL9n4KOUCuLoyvGJ7nWRDXjTSGAXO8AcCNVqmDJH0 jde@497820feb22a
The key's randomart image is:

+--[ED25519 256]--+
|.o===oo+         |
|.=.oE++ +        |
|= oo .oo .       |
|.=  oo           |
|  +.o = S        |
| . o.= +         |
|=   +.o          |
|*o..o+  .        |
|+*+o  oo         |
+----[SHA256]-----+

Tip

If you choose to enter a passphrase, you will not see anything in your terminal when you type it. This is intentional, so that no one looking over your shoulder can read it.

Should I protect my key with a password?

If you enter no password, your key will be stored in the clear. This will be convenient as you will not have to enter a password when you use it. However, any malicious code you allow to run on your machine could easily steal it. So could any AI agent (e.g. a coding assistant) that you let read files or run commands on your computer, even one you trust: the key is just a file it can read.

If your key is protected by a password, you can run an SSH agent to unlock it only once per session instead of every time you use it. While it is unlocked, other programs, AI agents included, still cannot copy it, but they can use it.

Would you like to know more?

Cool! Always tell me more!

Stop telling me more...

You can verify that a key has indeed been created by listing the contents of the SSH directory:

$> ls ~/.ssh
id_ed25519  id_ed25519.pub  known_hosts

Use ssh-copy-id to copy your public key to the server

The ssh-copy-id command uses the same syntax as the ssh command to connect to another computer (e.g. ssh-copy-id jde@example.com). Instead of opening a new shell, however, it will copy your local public key(s) to your user account’s authorized_keys file on the target computer.

Execute that command now (replacing jde with your username):

$> ssh-copy-id jde@ssh.archidep.ch

You will probably have to enter your password, so that ssh-copy-id can log in and copy your key. But once that is done, SSH should switch to public key authentication and you should not have to enter your password again to log in. SSH will use your private key to authenticate you instead. (You may have to enter your private key’s password though, if it is protected by one.)

More information

Once you have set up public key authentication for an SSH server, that server is in possession of your public key. Your SSH client can then use your private key to prove that you are the owner of this public key, using the mathematical relationship between the two. Your private key is never sent to the server during this process.

Connect with the ssh command again to see public key authentication in action:

$> ssh jde@ssh.archidep.ch

If it worked, the connection should now open without asking for a password. Your user account is still secured: authentication was performed transparently by your SSH client, using your private key.

The authorized_keys file

Now that you are connected to the server, you can check that your public key was added to your user’s authorized_keys file:

$> ls ~/.ssh
authorized_keys

$> cat ~/.ssh/authorized_keys
ssh-ed25519 AAAAC3NzaC1lZDI1NTE5AAAA... jde@497820feb22a

When your SSH client connects to the SSH server, the server will look for your public key (or keys) in this file and ask the SSH client to prove that it owns one of the keys (using the corresponding private key which rests on your local machine) using asymmetric cryptography.

The private key is never transmitted, and this new authentication process is transparent, handled automatically for you by the SSH client and server, hence why you no longer have to enter a password.

You can also create the authorized_keys file manually. Note that both the file and its parent directory must have permissions that make it accessible only to your user account, or the SSH server will refuse to use it for security reasons. The following commands can set up the file on the target machine:

$> mkdir -p ~/.ssh && chmod 700 ~/.ssh
$> touch ~/.ssh/authorized_keys
$> chmod 600 ~/.ssh/authorized_keys

The chmod command changes the permission of files. We will learn more about this command later on in the course.

Would you like to know more?

Cool! Always tell me more!

Stop telling me more...

Is your password gone?

Disconnect from the server again. Now connect while telling your SSH client not to use public key authentication:

$> ssh -o PubkeyAuthentication=no jde@ssh.archidep.ch

What happens? Why?

Which key is where?

You have now seen several files containing keys, on two different machines. Copy the following table and fill it in. For each file, write on which machine it is stored (your machine or the server), what it contains, and whether it must be kept secret. You can look for them with ls on both machines. The server’s own keys are in the /etc/ssh directory.

Tip

In modern Ubuntu (WSL included), the lines of your ~/.ssh/known_hosts file start with |1| and a jumble of characters instead of ssh.archidep.ch. Ubuntu hides the names of the servers you connect to, in case someone reads the file. The rest of each line is unchanged: a key type such as ssh-ed25519, then a server’s public key.

Then answer these questions:

• Which of these files is used to prove to the server that you are you?
• Which of these files is used to prove to you that the server is the right server?
• An attacker copies your id_ed25519.pub file. What can they do with it?

Copy a file with the scp command

The scp (secure copy) command works like the cp (copy) command, which copies files on your own machine, except that it can copy files to and from other computers that have an SSH server running. It uses SSH to transfer the files.

Like cp, it takes the file to copy first, then where to copy it:

$> scp <source> <destination>

A file on the server is written with the same <username>@<hostname> as in the ssh command, then a colon (:), then the path of the file on the server. For example, assuming your username is jde:

• scp hello.txt jde@ssh.archidep.ch:hello.txt copies the file hello.txt from your machine to the server.
• scp jde@ssh.archidep.ch:hello.txt hello.txt copies it from the server to your machine.

The side that comes first is where the file comes from. Run scp on your own machine, not on the server: your machine is the one that connects to the server, like with the ssh command.

A path on the server that does not start with / starts in your home directory on the server. jde@ssh.archidep.ch:hello.txt is the file ~/hello.txt of the jde user, on the server.

You will use scp later in the exercise, on your way to the remote land of Avalon.

Tip

Here are a few additional examples of how to use the scp command:

• scp foo.txt jde@192.168.50.4:bar.txt

  Copy the local file foo.txt to a file named bar.txt in jde’s home directory on the remote computer.

• scp foo.txt jde@192.168.50.4:

  Copy the file to jde’s home directory with the same file name.

• scp foo.txt jde@192.168.50.4:/tmp/foo.txt

  Copy the file to the absolute path /tmp/foo.txt on the remote computer.

• scp jde@192.168.50.4:foo.txt jsmith@192.168.50.5:bar.txt

  Copy the file from one remote computer to another.

• scp -r foo jde@192.168.50.4:foo

  Recursively (the -r option) copy the contents of directory foo to the remote computer (a recursive copy means that the directory and all its subdirectories are copied).

Copy files with an SFTP application

SFTP is an alternative to the original FTP protocol to transfer files. Since FTP is insecure (e.g. passwords are sent unencrypted), SFTP is an alternative that goes through SSH’s secure channel and therefore poses fewer security risks.

Most modern FTP clients support SFTP. Here’s a couple:

• WinSCP
• Cyberduck
• FileZilla

Many code editors also have SFTP support available through plugins.

Install one of these applications (or use your favorite SFTP application if you already have one) and connect to the SSH exercise server with public key authentication. You will need to configure a connection with the following information:

• Protocol: SFTP
• Host, hostname or server address: ssh.archidep.ch
• Username: the username shown on the dashboard
• Port: 22 (the standard SSH port)
• Private key (or key file): your private key, ~/.ssh/id_ed25519

Leave the password empty. The application will use your private key to prove that it owns the public key in your authorized_keys file on the server, just like the ssh command does. Make sure to select the private key (id_ed25519), not the public key (id_ed25519.pub).

Tip

How to use these parameters depends on which application you use. They may not be named exactly like this.

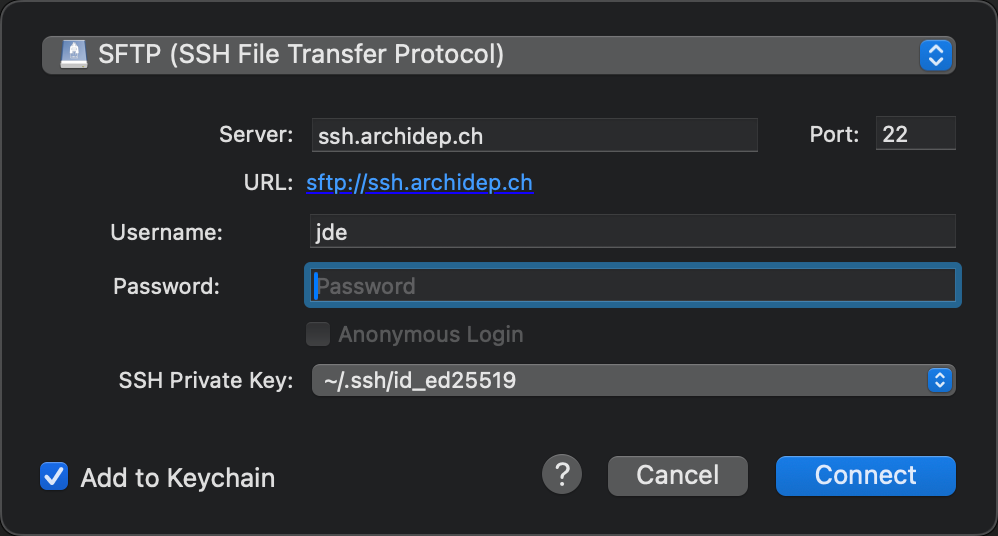

For example, here’s how to do it with Cyberduck on macOS:

Tip

The .ssh directory is hidden, so it may not appear when you browse for your private key:

• On macOS, use the Cmd-Shift-. shortcut in the file selection window to display hidden files and directories.
• On Windows, your private key is in the WSL, not in your Windows files. Follow the Windows instructions below.
• On most Linux distributions, the file manager will have an option to show hidden files under its menu.

Tip

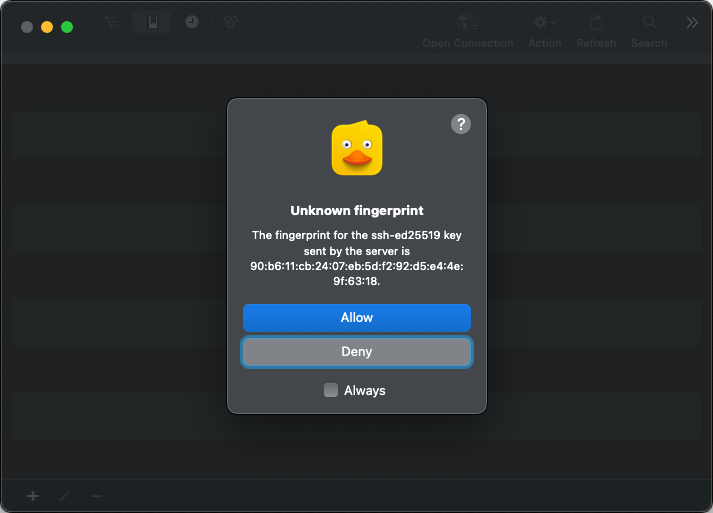

Cyberduck shows the MD5 fingerprint, not the SHA256 one, and without the MD5: prefix. Compare it with the fingerprint that starts with MD5: on your dashboard, for the same type of key (here ed25519).

Once you have successfully connected to the server, copy a file to the server using the SFTP application. These applications will usually allow you to drag-and-drop files to and from the server. Play with it a bit and see what you can do.

Now you know another way to copy files over SSH.

Give your key to WinSCP (Windows only)

This section is for Windows users. Your private key is in the WSL, not in your Windows files, and a Windows application must be told where to find it. We suggest WinSCP, which can read it where it is.

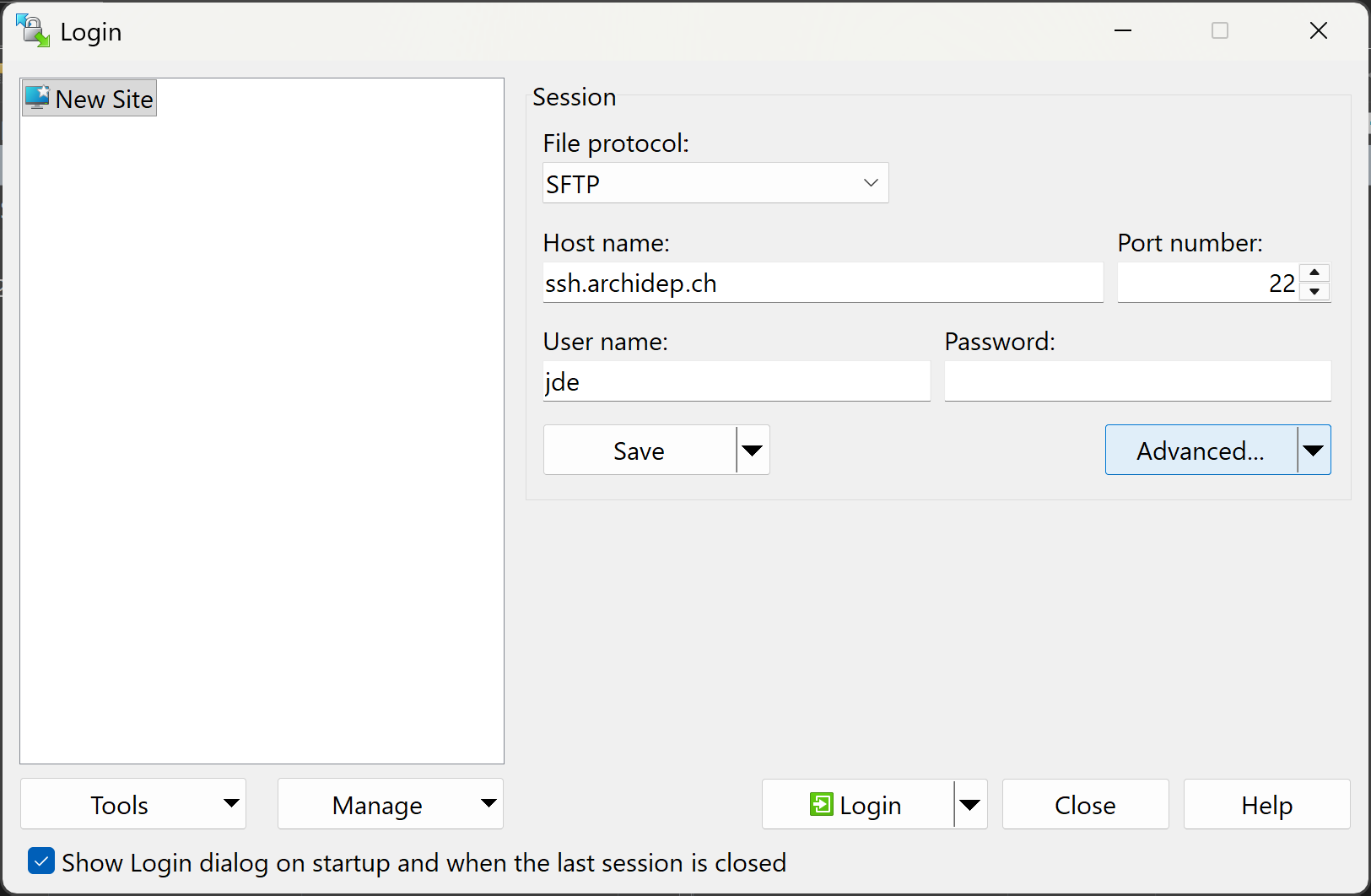

Install it, then fill in its Login window: the File protocol is SFTP, the Host name is ssh.archidep.ch, the Port number is 22, and the User name is the one from your dashboard. Leave the password empty, and click Advanced…:

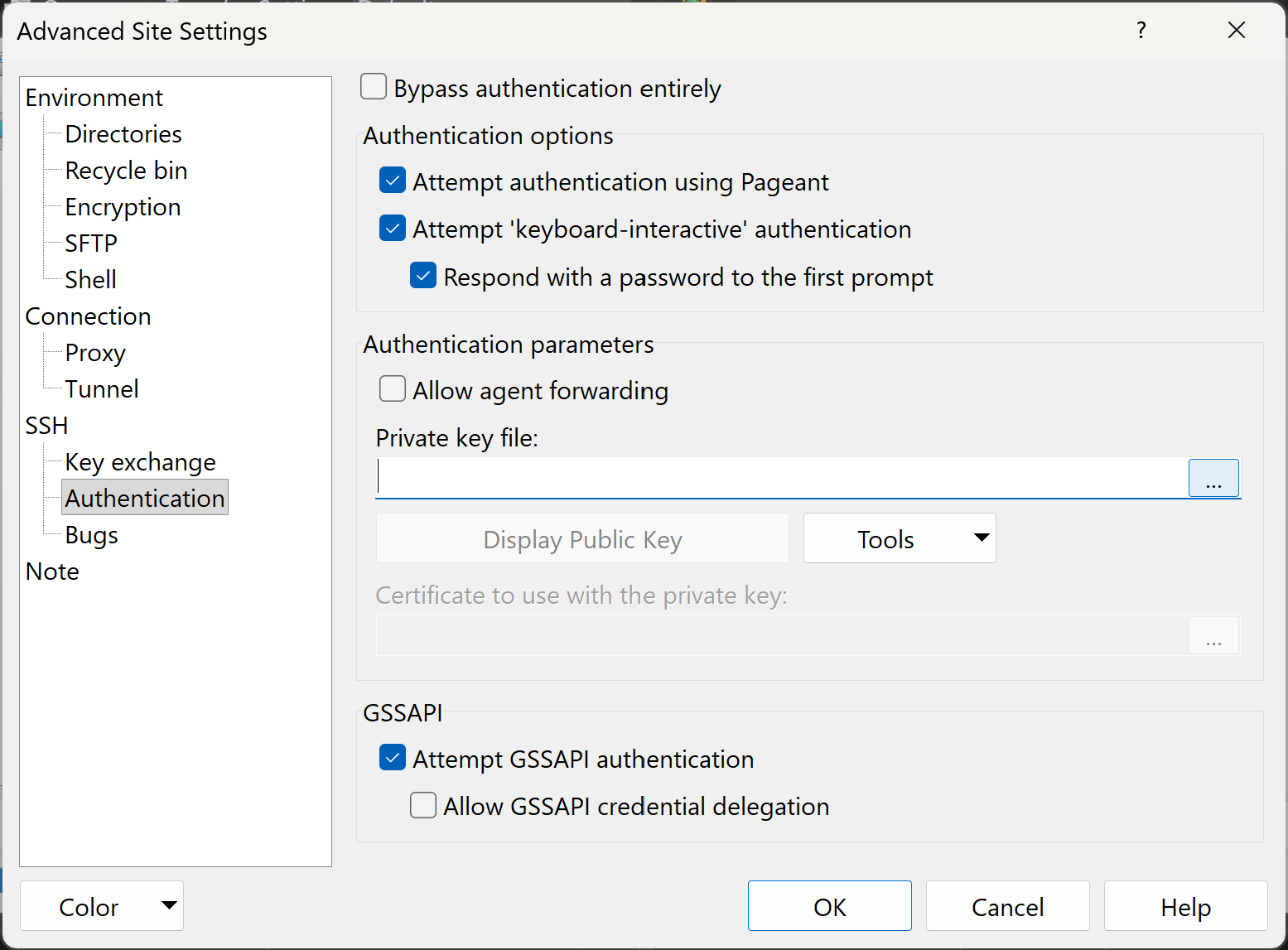

Under SSH > Authentication, click the … button next to Private key file:

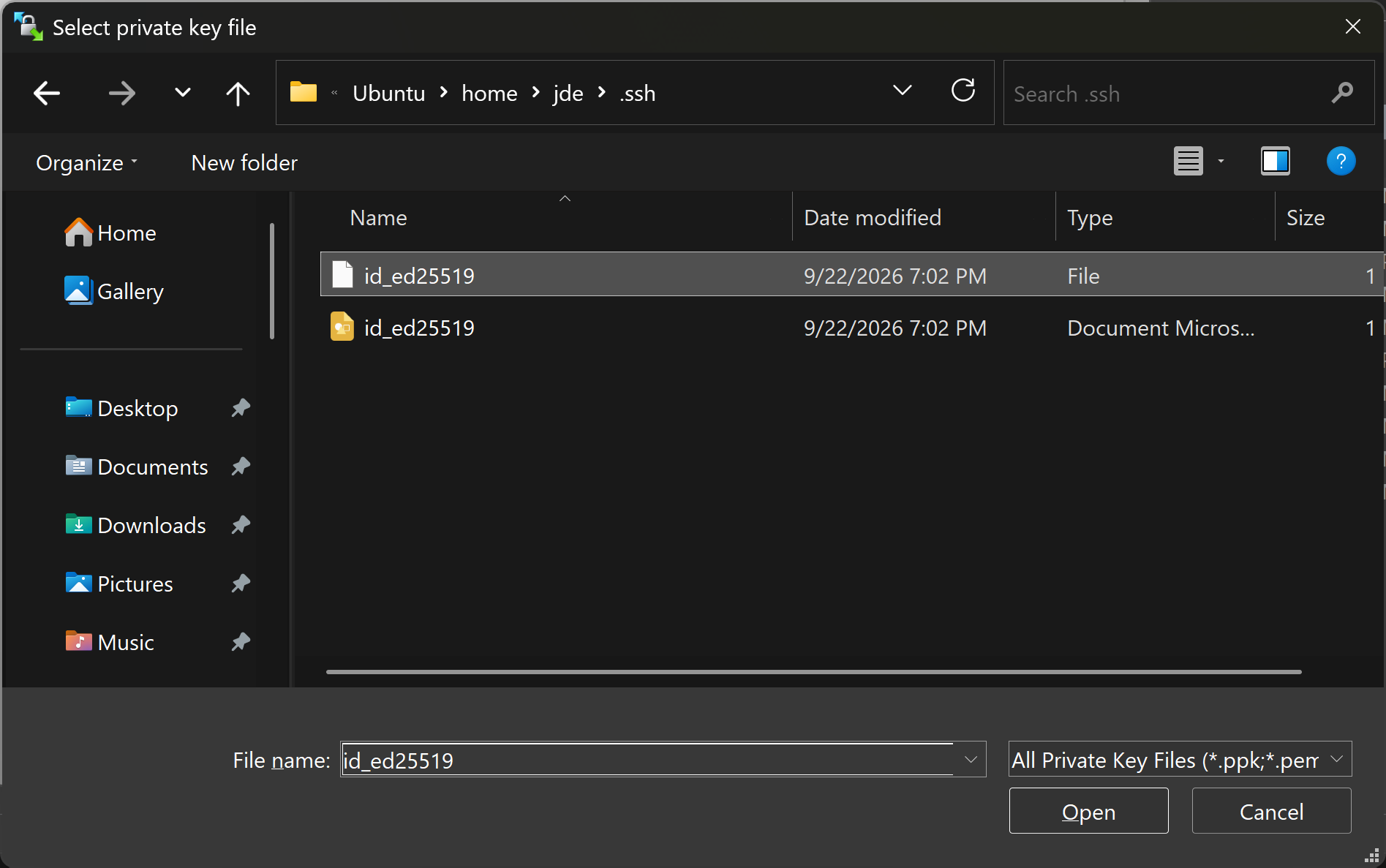

The file selection window that opens does not show the Linux entry that the Windows file explorer has in its sidebar. Type the path to your .ssh directory in the address bar instead, replacing jde with your Linux username:

\\wsl.localhost\Ubuntu\home\jde\.ssh

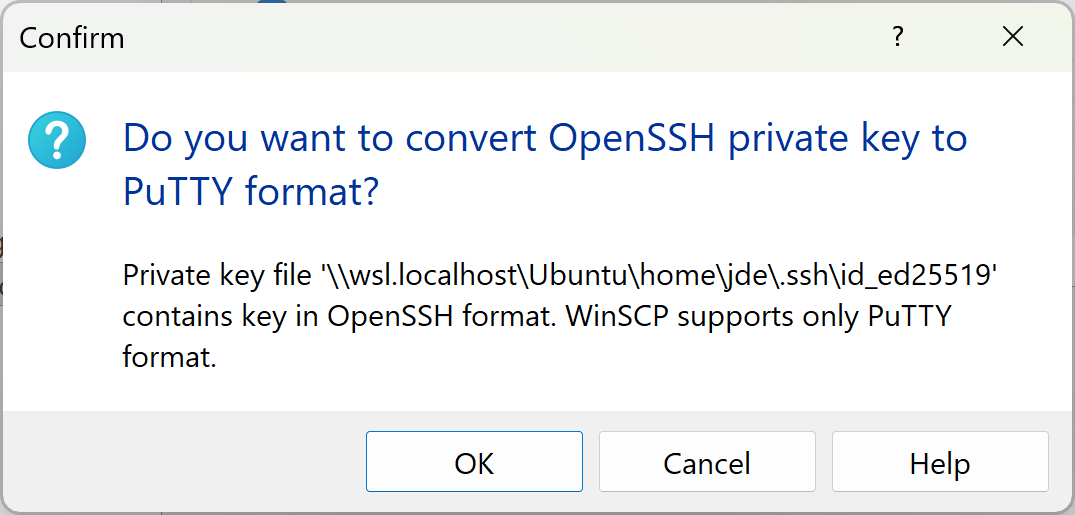

WinSCP only reads private keys in its own format, so it offers to convert yours:

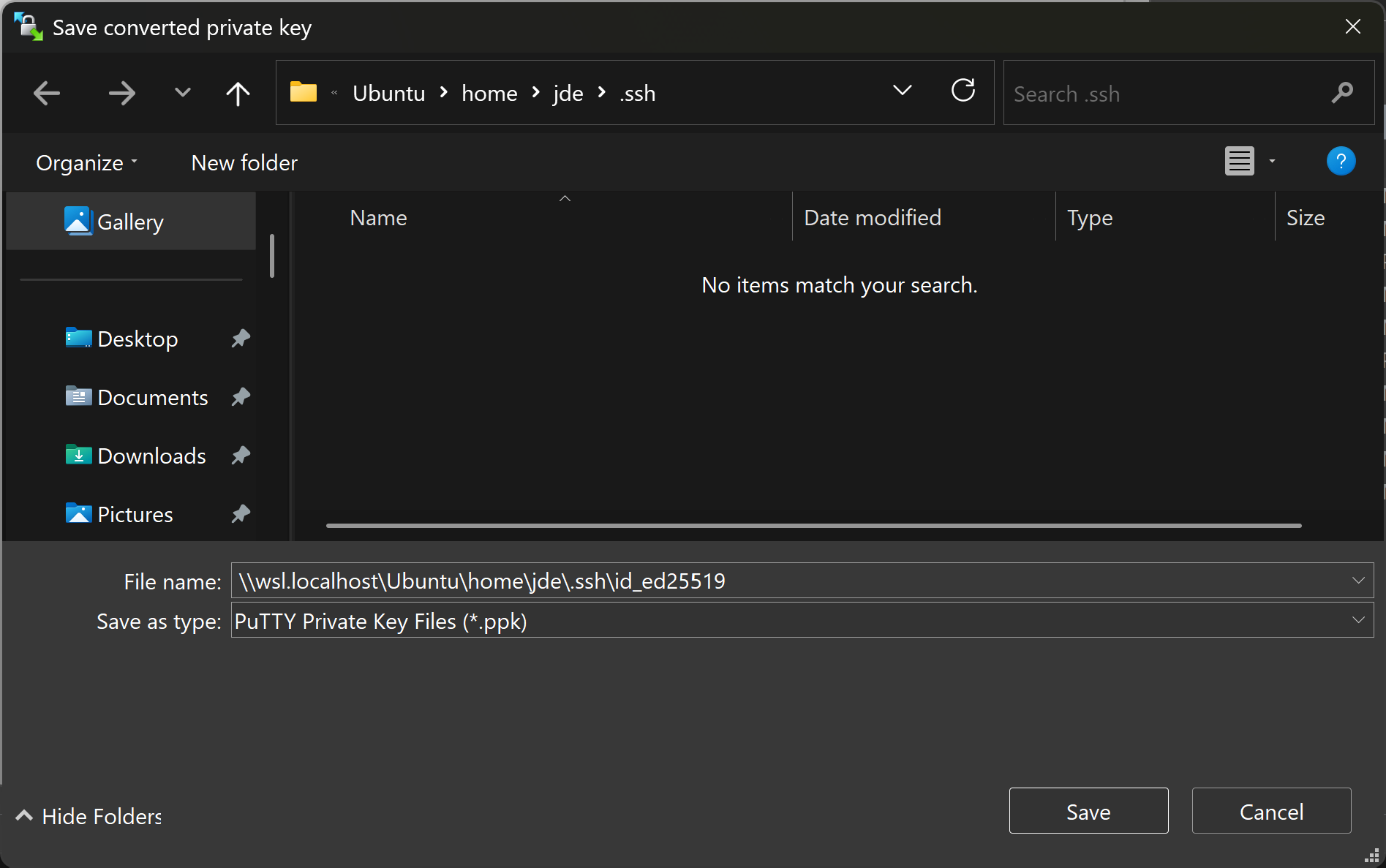

Accept. It then asks where to save the converted key, and suggests your .ssh directory, next to the original. Keep it there:

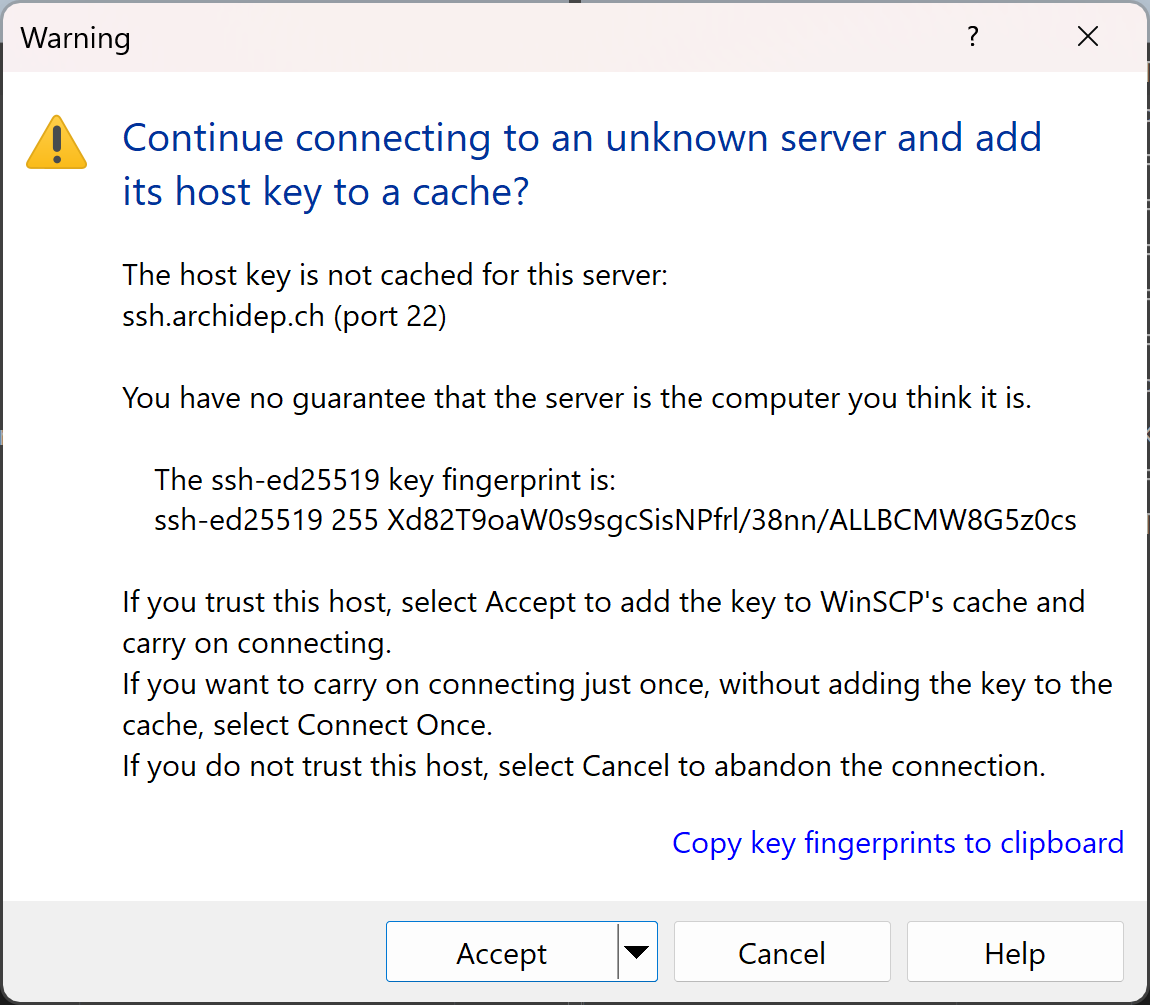

Click OK, then Login. WinSCP shows you the server’s host key the first time you connect, just like the ssh command did:

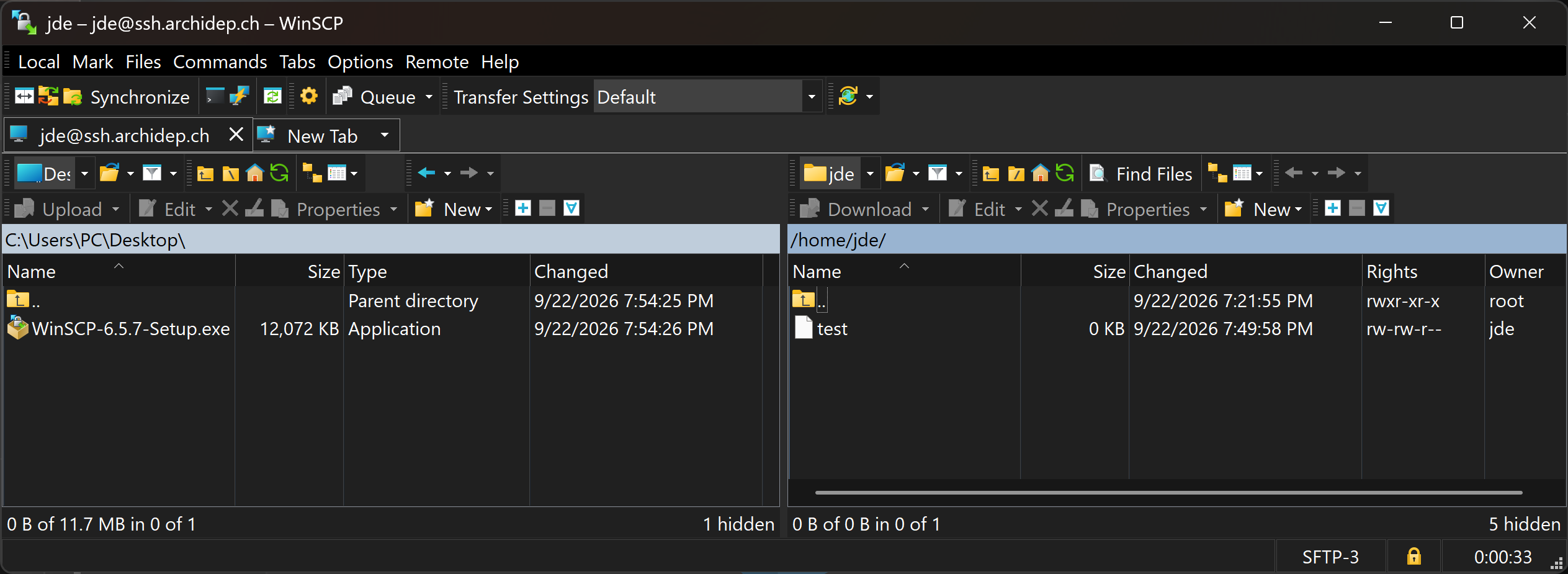

Once connected, your Windows files are on the left and the server’s files on the right, and you can drag and drop between them:

Sign a message with your key

When you log in with your key, your SSH client signs data from the connection with your private key, and the server checks the signature with your public key from ~/.ssh/authorized_keys. You can do the same thing by hand, with a message of your own.

On your machine, create a message and sign it with your private key:

$> echo "Hello Bob, I like you" > message.txt

$> ssh-keygen -Y sign -f ~/.ssh/id_ed25519 -n file message.txt
Signing file message.txt
Write signature to message.txt.sig

The -f option is the private key to sign with. The -n option is a label saying what the signature is for (here, a file). The same label must be given when checking the signature, so that a signature made for one purpose cannot be reused for another. If your key is protected by a passphrase, you will be asked for it.

The signature is in the new message.txt.sig file. Take a look at it with cat.

Copy both files to the server. The scp command can copy several files at once, if you list them before the destination:

$> scp message.txt message.txt.sig jde@ssh.archidep.ch:

Connect to the server and check the signature:

$> ssh-keygen -Y check-novalidate -n file -s message.txt.sig < message.txt
Good "file" signature with ED25519 key SHA256:oV28VA4IAtvQKMi6Tq21cCOy...

The -s option is the signature to check. The < character sends the contents of message.txt to the command as its input. You will learn more about it later in this course.

The command tells you that the signature is valid for this message, and which key made it, by its fingerprint. It does not tell you whether that key is one you trust. Display the fingerprint of the public key in your ~/.ssh/authorized_keys file, and compare the two:

$> ssh-keygen -l -f ~/.ssh/authorized_keys
256 SHA256:oV28VA4IAtvQKMi6Tq21cCOy... jde@example.com (ED25519)

Now modify the message on the server, and check the signature again:

$> echo "Hello Bob, I hate you" > message.txt

$> ssh-keygen -Y check-novalidate -n file -s message.txt.sig < message.txt
Signature verification failed: incorrect signature
Could not verify signature.

Then answer these questions:

• Which key made the signature, and on which machine was it?
• Which key checked it, and on which machine was it?
• An attacker intercepts your message, modifies it, and signs it with their own private key. Would the ssh-keygen -Y check-novalidate command accept their signature? How would you notice?
• What does the server do when you log in that you just did by hand?

SSH agent

If you use a private key that is password-protected, you lose part of the convenience of public key authentication: you don’t have to enter a password to authenticate to the server, but you still have to enter the key’s password to unlock it.

Tip

If you did not set a passphrase when generating your key, you can also add a passphrase afterwards.

The ssh-agent command can help you there. It runs a helper program that will let you unlock your private key(s) once, then use it multiple times without entering the password again each time.

There are several ways to run an SSH agent:

• How to use ssh-agent for authentication on Linux / Unix
• Generating a new SSH key and adding it to the ssh-agent (GitHub)
• Single sign-on using SSH

You may already have an SSH agent running. Run the ssh-add -l command to list (-l) unlocked keys:

• If you get an error message, it probably means that SSH agent is not running, for example:

  $> ssh-add -l
  Could not open a connection to your authentication agent.


• If it tells you that you have no identities, it means that SSH agent is running but that you have not unlocked any keys yet:

  $> ssh-add -l
  The agent has no identities.


If SSH agent is not already running, follow one of the guides above or run an agent and have it start a new shell for you:

$> ssh-agent $SHELL

The advantage of this last technique is that the agent will automatically quit when you exit the shell, which is good since it’s not necessarily a good idea to keep an SSH agent running forever for security reasons.

Once you have your agent running, the associated ssh-add command will take your default private key (e.g. ~/.ssh/id_ed25519) and prompt you for your password to unlock it:

$> ssh-add
Enter passphrase for /Users/jde/.ssh/id_ed25519:
Identity added: /Users/jde/.ssh/id_ed25519 (...)

The unlocked key is now kept in memory by the agent. The ssh command (and other SSH-related commands like scp) will not prompt you for that key’s password as long as the agent keeps running.

If you want to load another key than the default one, you can specify its path:

$> ssh-add /path/to/custom_id_ed25519

Would you like to know more?

Cool! Always tell me more!

Stop telling me more...

The remote land of Avalon

The rule of Avalon. Avalon is on the SSH exercise server, and your own computer is your own land. Each step must be done on the right machine, so always know which machine your terminal is connected to. Keep two terminals open: one logged in to the server, and one on your own computer.

To go to Avalon, log in to the server with your key, and take the barge:

$> ssh <username>@ssh.archidep.ch
$> dock

Then do what it says. Your goal: find the parrot. Stuck? Read the hint in ~/avalon, on the server (cat .hint). You will not need this page again until Avalon is behind you.

On the way, you will:

• Show the server that you came with your key, not your password.
• Copy a file from your computer to the server with scp, and another one from the server to your computer.
• Run a command on the server without logging in.
• Decide whether to trust a server you have never connected to before.

Tip

Want to start over? Run dock --restart on the server.

A message on the shore

When the Lady of the Lake has spoken, someone leaves you a message on the shore: ~/avalon/message.txt, on the server. This is the last trial. Read it, and do what a careful traveller would do.

What have I done?

You worked on two computers from a single terminal. The exercise server is a real machine somewhere on the Internet, with no screen and no windows of its own: text sent over the network is the only way in, and everything you learned in the previous chapter is what works there.

Along the way, you:

• Connected to a server with ssh, after checking its key fingerprint.
• Generated a key pair and gave your public key to the server with ssh-copy-id.
• Copied files in both directions with scp, and with an SFTP application, which goes through the same SSH channel.
• Ran a command on the server without logging in.
• Refused a server whose fingerprint did not match.
• (Optionally) signed a message with your key by hand, and used an SSH agent.

The hardest part of SSH is not a command: it is knowing which machine your command runs on. While you are logged in, your terminal shows a shell running on the server: what you type is sent there, and what it prints comes back. hostname and whoami are how you ask where you are. Avalon made every step depend on it: Merlin only accepted a gift made on your own computer, the prophecy only showed its ink away from the server, and the Lady of the Lake only answered a command sent from home. scp says the same thing in its arguments: the side written first is the one the file comes from.

Files cross; settings do not. If you carried your treasure to Avalon, it still ran there as ./treasure, because a program is a file like any other — but typing treasure gave “command not found”, since the PATH that knows about your bag is yours, at home. Each machine also has its own home directory: avalon/prophecy after a colon is on the server.

An SSH connection authenticates twice, in opposite directions: the server proves that it is the server, then you prove that you are you. Both proofs are the same mechanism: a signature made with a private key and checked with the matching public key. Your private key never leaves ~/.ssh on your machine, the server’s host key never leaves /etc/ssh on the server, and only signatures travel, each one made for a single connection and useless anywhere else. That is why giving a server your public key costs you nothing, and why a password, which can be replayed, is far worse to hand over.

Nothing on the network tells you whose key you are being shown: you decide, once, the first time you connect. That is what the fingerprint question asks, and your SSH client then remembers your answer in ~/.ssh/known_hosts and stops asking. The message on the shore was that attack in miniature: same address, same username, everything looking right, and only the fingerprint said otherwise — it was not on the dashboard. Refusing printed Host key verification failed, which reads like an error and was the right outcome; ssh-keygen -R is how you take a wrong answer back.

Finally, ssh-copy-id added a way into your account without closing the old one: your password still worked when you asked for it. Only the server’s own configuration can refuse passwords, and the server you will create later in the course will do exactly that: a hostname, a username and your key, with no password left to steal.

Clean up (optional)

Avalon is behind you? You can remove what these exercises left on your computer:

• Open your shell’s configuration file with nano (~/.bashrc in the WSL, ~/.zshrc on macOS), and delete the line you added to your PATH in Hello Shell. Then open a new terminal.

• Delete the prophecy you brought home from Avalon. It is in the directory you ran scp in:

  $> rm prophecy


• If you made a land.txt file on your way to Avalon, delete it too, in the directory you made it in:

  $> rm land.txt


• If you signed a message with your key, delete it and its signature:

  $> rm message.txt message.txt.sig


• If you answered yes to the message on the shore, your SSH client still trusts the server that was waiting on that other port. Make it forget that key:

  $> ssh-keygen -R '[ssh.archidep.ch]:2222'


  Your ~/.ssh/known_hosts file is where that trust was written down. The entry for the exercise server itself, on its normal port, is a key you checked against the dashboard: keep that one.

• Delete the treasure hunt:

  $> rm -r ~/treasure-hunt


Troubleshooting

Here’s a few tips about some problems you may encounter during this exercise.

Please type 'yes', 'no' or the fingerprint:

If SSH asks you this after you pasted a fingerprint, the fingerprint you pasted does not match the key the server sent. The dashboard shows one fingerprint per key type, and the question names one type, usually ED25519. Paste the fingerprint of that type, all of it, starting with SHA256:.

If it still does not match, answer no, and tell the teacher.

WARNING: REMOTE HOST IDENTIFICATION HAS CHANGED!

Your SSH client remembers another key for ssh.archidep.ch, for example the key of a server that was there before. See how to handle this warning in “Secure Shell (SSH)”. Check the new fingerprint against the dashboard before you remove the old key with ssh-keygen -R. If it does not match, do not connect, and tell the teacher.

I am still asked for my password after ssh-copy-id

If ssh-copy-id says No identities found, or if the server still asks for your password after it, your key pair is probably not on the machine you run ssh from. For example, you ran ssh-keygen while you were connected to the server, or on Windows, you generated the key in PowerShell and you connect from the WSL.

Run hostname to see which machine your terminal is on. Then run ls ~/.ssh on your own computer (in the WSL on Windows). If id_ed25519 is not there, generate your key pair there, and run ssh-copy-id again.

scp finishes without error, but nothing arrives on the server

You probably forgot the colon (:) after the address of the server. Without it, both sides of the command are on your computer: scp hello.txt jde@ssh.archidep.ch copies hello.txt to a new file on your computer, named jde@ssh.archidep.ch. Delete that file, and add the colon:

$> scp hello.txt jde@ssh.archidep.ch:

My SFTP application asks for a password or refuses my key

You probably selected your public key (id_ed25519.pub) instead of your private key (id_ed25519), or no key file at all. See the tips under Copy files with an SFTP application to select the right file, including how to find it when it is hidden or in the WSL.

On Windows, some applications cannot read a file from the WSL at all, and fail with an error of their own instead of asking for your key again. Cyberduck is one of them. Use WinSCP, which reads your key where it is.

zsh: no matches found with ssh-keygen -R

Zsh reads the square brackets in [ssh.archidep.ch]:2222 as a pattern of file names. Put the address in quotes, as on this page:

$> ssh-keygen -R '[ssh.archidep.ch]:2222'

ssh -p ends with Connection timed out

The network you are on probably blocks that port: some networks only let a few ports through. Try again from another network, such as your phone’s hotspot. If that does not work either, tell the teacher.
